Primary Information

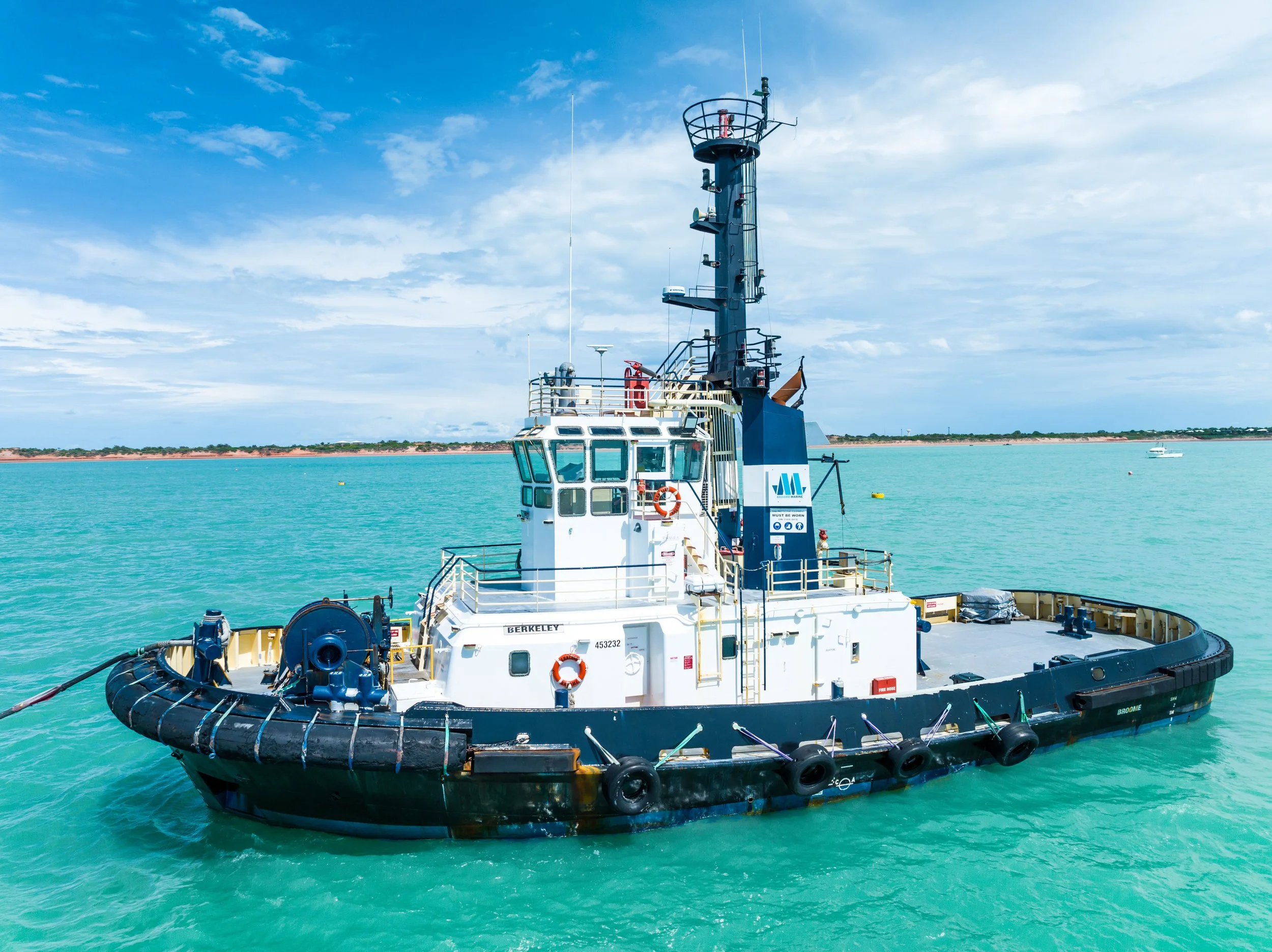

Name: Berkeley                                        Year Built: 1991

Vessel Type: ASD Harbour and coastal tow tug          Flag: Australia

IMO: 9015644                                          MMSI: 503562300

Call Sign: VNEG                                      Port of Registry: Townsville

Shipyard: Adelaide Ship Construction

Classification Society: ABS

Dimensions

Length Overall: 29.42 Metres                     Draught: 4.83 Metres

Length Waterline: 27.9 Metres Beam (moulded): 10.75 Metres

Depth (moulded): 5.22 Metres                     Gross Tonnage: 308 Tonnes

Net Tonnage: 92 Tonnes

performance

Maximum Speed: 11.5 Knots  Bollard Pull Astern: 43.51 Metric Tonnes

Bollard Pull Ahead: 47 Metric Tonnes

  Speed and Consumption Performances

Full Operating Speed: 12 Kts                       In Port: 150 Lts/Day

Economic Operating: 10 Kts

                               Capacities

Fuel: 70 Tonnes         Fresh Water: 12.6 Tonnes

Ballast Water: 90.88 Tonnes Foam: 16 Cubic Metres

propulsion & Generators

Main Engines: 2 x Detroit 16V 149 Ti 2686 KW Generators: 2 x Detroit 470 1T 135 KVA

Propulsion: ASD 2 x Ulstein 1650H

navigation & Communication

Magnetic compass: Gillie Sestrel Mark X GPS: Koden KGP 900

Gyro Compass: Tokimec ES-11A Radar: Yes

Echo Sounder: ELAC LAZ 50 Auto Pilot: Robertson AP9 MKII

VHF: Shipmate RS8000

Equipment

Winch FWD: Brattvaag Winch AFT: Brattvaag

Fire Fighting Equipment: Main monitor - Detroit 1042Ks @ 1800rpm

Secondary monitor - Detroit 1042Ks @ 1800rpm

Accommodation


Berths: 8
